Tapped holes in rear crossmember

[3Tripnip]

Good afternoon all!

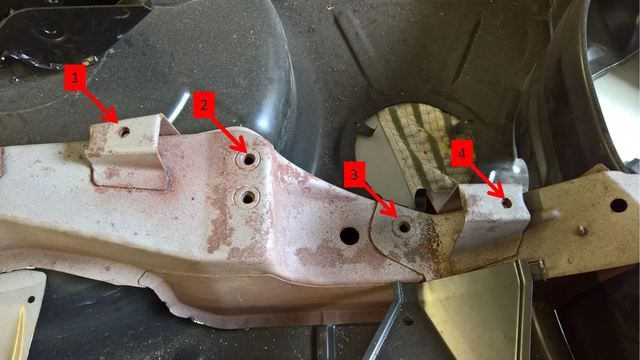

Can anyone confirm what the tapped threads should be for the Syncro rear crossmember? I need to chase the threads on mine.

Thread 1: M8, for tank strap bolt (N 019 700 2), M8x30
Thread 2: M10, for mounting bolt (N 101 417 01), M10x25
Thread 3: M10, for mounting bolt (N 101 417 01), M10x25
Thread 4: M8, for tank strap bolt (N 019 700 2), M8x30)

Thanks in advance for the help!

Ben

[Housey]

probably M8 and M10x1.5

[Jetta GTX 16V Syncro]

Hi! Where in the USA are you? I’m in Louisiana doing a 16V G60 Syncro to my Mk2 Jetta. Anyway, go to Harbor Freight and get a tap-and-die set for $20 and you’ll always know. You can find better quality and prices online too.

[3Tripnip]

Thanks for the help. I have a tap and die set already, but the threads were pretty beat up. I want to chase the threads, but want to make sure I use the correct tap.

Oh, and I live just outside Portland, Oregon.

[Jetta GTX 16V Syncro]

You on any of the Facebook groups for Syncro? What’s your project? Mine’s in my signature.

[3Tripnip]

Got them! I’ll leave the info up here for anyone else who may be interested.
